The STA-Z60MJ laser irradiator incorporates an innovative light source design, delivering up to 60 mJ laser output within an extremely compact form factor. It features a pulse width exceeding 10 ns, with an initial laser divergence angle reduced by 50% compared with conventional products.
Adopting a single-aperture transmit-and-receive integrated architecture, the irradiator is compact in structure and well-suited for applications such as electro-optical countermeasures, vehicle-mounted laser ranging and target irradiation.
Main functions of irradiator:
Target irradiation guidance
Target distance test
Encode laser output
Overvoltage, overcurrent and overtemperature protection, power anti-reverse function
Differential signal external trigger function
Main technical parameters:
| Main parameters of laser light source | |
| Model | STA-Z60MJ |
| Laser wavelength | 1064nm±1nm |
| Pumping mode | Semiconductor pumping |
| Repetition frequency
Output energy |
1~20Hz
≥60mj@20Hz |
| Irradiation distance | ≥4km |
| Pulse width | 10ns~20ns |
| Beam divergence Angle | ≤0.3mrad |
| Axial stability | <0.1mrad |
| Pulse energy stability | <5% (RMS, within one irradiation cycle) |
| Working time @20hz | work for 1 minute, rest for 0.5 minutes; work for 8 cycles, rest for 15 minutes before continuing to work |
| Power supply | DC 28V±4V |
| Power | standby power consumption is less than 20W; peak power consumption is less than 120W; |
| Coding type | Built-in precise frequency coding, variable interval code, support pseudo random coding |
| Coding accuracy | ≯1.5μs@20Hz |
| Ranging system indicators | |
| Ranging mode | Pulse ranging |
| Range frequency | 1-5Hz |
| Max Range | ≥8Km (2.3m*2.3m NATO target, Reflectivity0.3，Visibility>25km,) |
| Mini Range | ≤500m |
| Ranging accuracy | ±5m |
| Accuracy rate | ≥98% |
| Interfaces and structures | |
| Module Size | ≤198X109X75.5mm |
| Weight | ≤1.4kg |
| Cooling mode | Air cooling |
| The RS422 serial port and external synchronous input are 422 levels, and the external synchronous illumination is 0-5V | |
| Environmental suitability | |
| Working temperature | -40℃~ +60℃ |
| Storage temperature | -50℃~+75℃ |

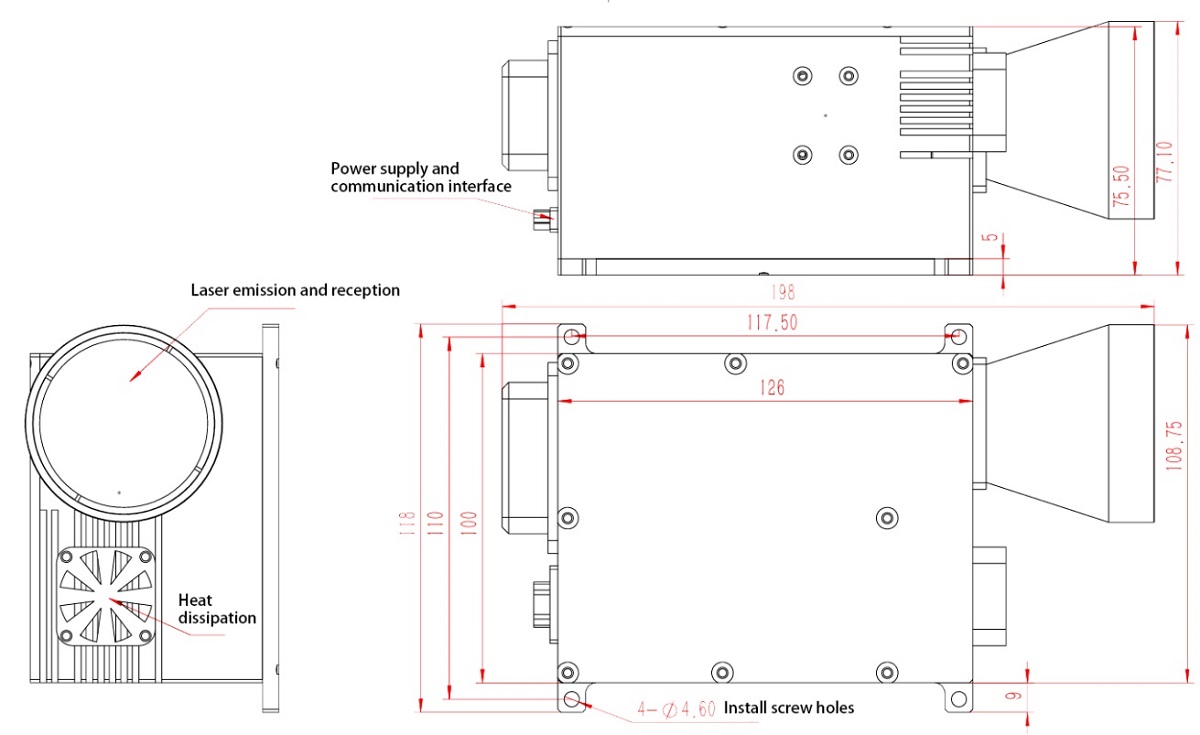

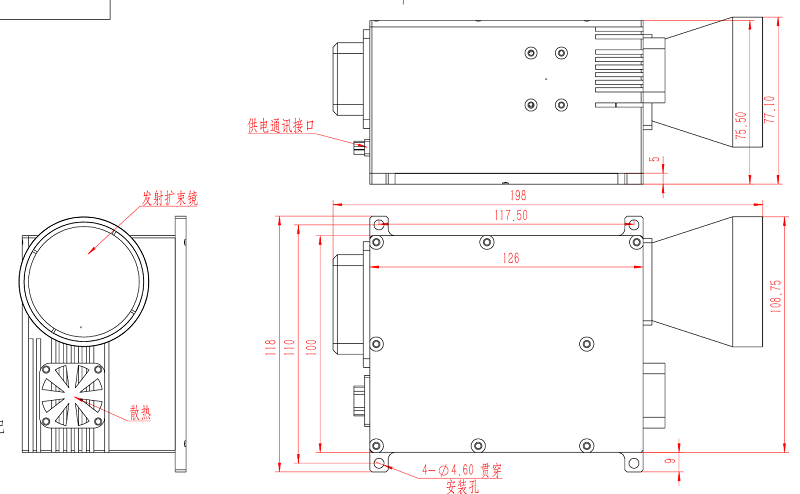

Product external dimensions:
