STA-LRM30X is a high-performance long-range laser ranging module. It adopts a 905 nm semiconductor laser device and operates based on the pulsed TOF (Time of Flight) principle, achieving long-distance measurement from 5 m to 3500 m. Featuring ultra-low power consumption, compact design, stable performance and high reliability, it is specially designed for space- and power-constrained scenarios such as handheld mobile devices and miniaturized UAV pods. It can be perfectly integrated with thermal imaging, night vision, visible light and other systems.
Max Ranging: ≥3500m
Ranging of natural targets: ≥2500m
Ranging accuracy: ±1m
Weight: ≤38 ±0.5g
Technical parameters are shown in the following table:
| Model | STA-LRM30X | |
| Laser wavelength | 905nm | |
| Laser Receiving Aperture | 28(L)x23.6(W)mm Aspherical lens | |
| Laser Emission aperture | 20(L)x14.6(W)mm Aspherical lens | |
| Ranging capability | White Building | ≥3500m |
| Trees | ≥2500m | |
| Laser grade | Class 1 Eye safety | |
| Mini range | 5m | |
| Ranging accuracy | ±1m | |
| Resolution | ±0.1m | |
| Operating Current | ≤180mA | |
| Standby current | ≤35mA | |
| Power consumption | Standby≤0.2W | |
| Peak≤0.6W | ||
| Communication Interface | TTL / RS232 / RS485 | |
| Operating Temperature | ·-20℃~+55℃ | |
| Storage Temperature | ·-30℃~+60℃ | |
| Input Voltage | 3.3-5V | |
| Beam divergence angle | 6 mard | |
| Ranging Frequency | 1Hz | |
| Power | ≤1 mW Safe for human eyes | |
| Ranging method | Pulse | |
| Weight | 38 ±0.5g | |
| Size | 62.05x37x47mm | |
Application Scenarios:
– Security patrol / law enforcement: Handheld thermal imager with laser ranging, quickly determines target distance at night or in fog; suitable for security, border control, anti-smuggling, and forest fire prevention.
– Outdoor adventure / hunting / bird watching: Night vision / infrared telescope with integrated ranging for safe distance measurement, terrain evaluation, and target positioning.
– Geology / forestry / scientific research: Long-distance point measurement in field environments.
– UAV inspection: Distance measurement for power lines, towers, tree barriers; oil and gas pipeline inspection; bridge and dam detection.
– Security / border surveillance UAVs: Day and night monitoring, target ranging, border patrol, maritime and island monitoring.
– Individual soldier / tactical equipment: Handheld rangefinder telescopes, portable electro-optical reconnaissance instruments, target positioning.
– Long-range PTZ / thermal imaging monitoring: Perimeter security, key area surveillance, target ranging with linked alarm.

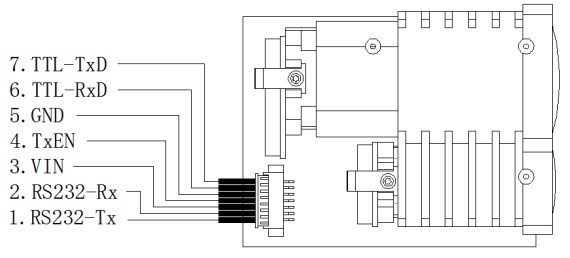

M30X LRF Module interface description
 |
||||
| Pin No. | Function description | |||
| 1 | RS232-Tx | |||
| 2 | RS232-Rx | |||
| 3 | Power supply：DC（3.0V – 5.0V） | |||
| 4 | TxEN: When serial port starts to send data frame, TxEN signal is high; After one frame data transmission is over,TxEN signal is low. TxEN Signal can be used to switch from emission to reception as half duplex, such as RS485. |
|||
| 5 | GND | |||
| 6 | UART-RxD（TTL: Voltage is programmable：3.0V – 5.0V）； | |||
| 7 | UART-TxD（TTL: Voltage is programmable：3.0V – 5.0V)； | |||
| Note: 1. This module has 2 communication serial output, RS232 & TTL. Each can be used by different pin outs, but can’t be used at the same time. 2. UART Setting: 10 bits are transmitted or received; one start bit, 8 data bits (LSB first), one stop bit, non-parity |
||||
| Electrical Characteristics | ||||
| Parameter | Test condition | Min | Max | Units |
| Vin | T=25°C | 2.5 | 5.0 | V |
| Icc | Standby (T=25°C, Vin=3.0V) |
– | 50.0 | mA |
| Ranging (T=25°C, Vin=3.0V) |
– | 150.0 | mA | |
Range performance maximum
4500 m
Typical accuracy
±1 m
Weight
38 ± 0.5 g
Range performance maximum
350 m
Typical accuracy
±0.1 m
Range frequency
200 Hz

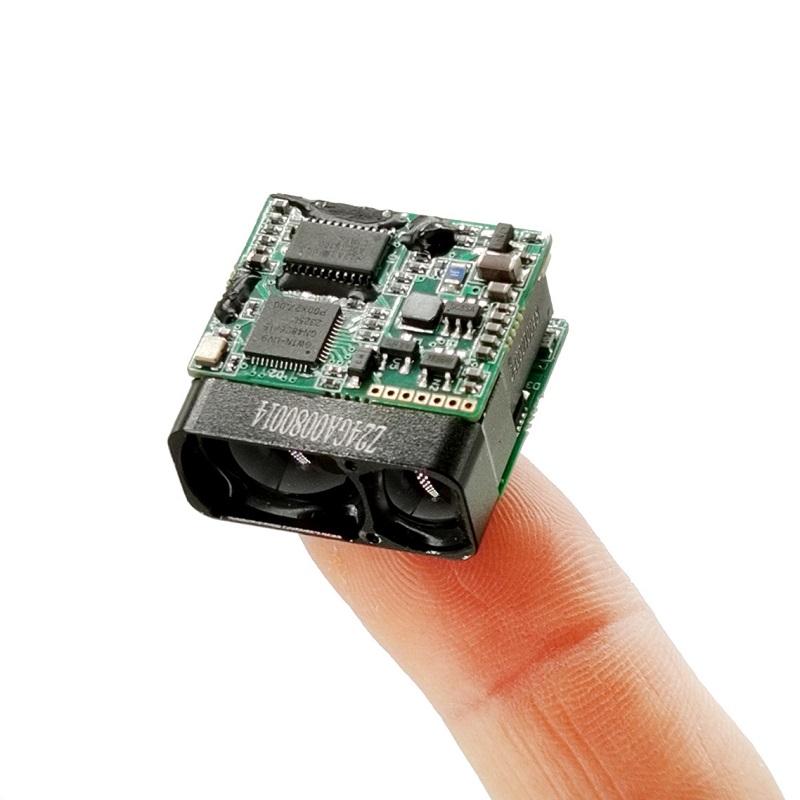

Range performance maximum
2000 m
Typical accuracy
±1 m
Weight
14 ± 0.5 g

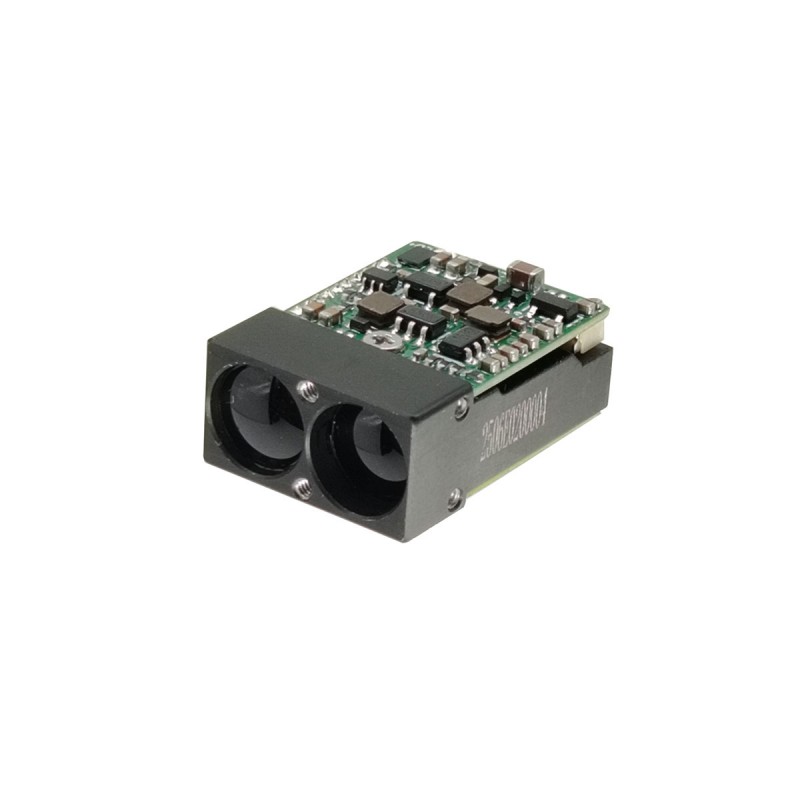

Range performance maximum
