Product Introduction:

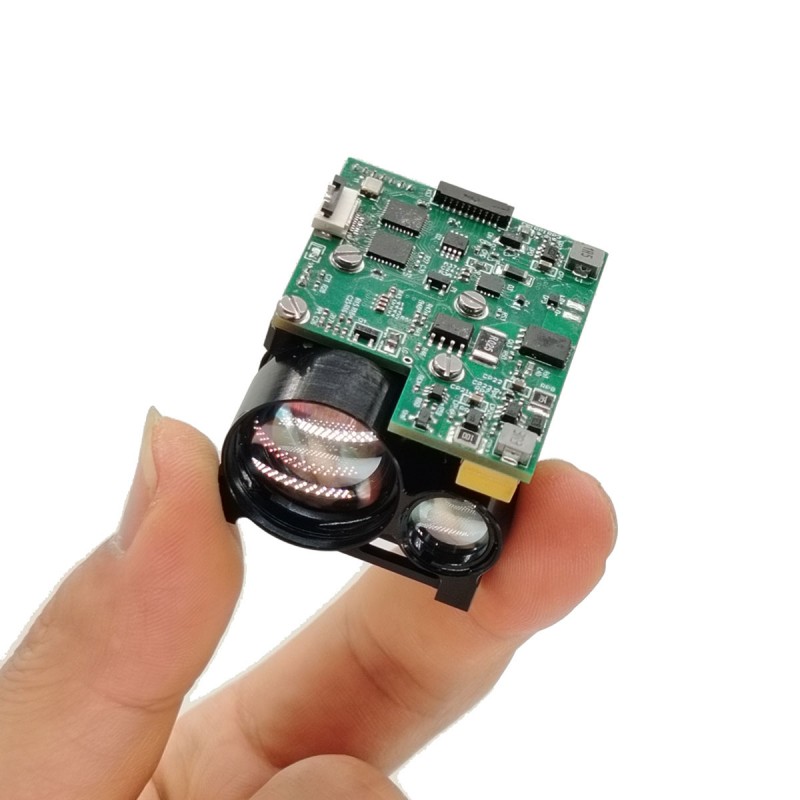

STA-LRH4000X 4km Eye-Safe Laser rangefinder module，Adopting Stalaser’s independently developed 1535 nm erbium-glass laser core components, it features long-distance measurement, low power consumption, compact size and easy integration. With stable and reliable performance, it is widely compatible with various optoelectronic systems such as airborne pods, handheld thermal imagers and optoelectronic gimbals, and supports convenient secondary development and whole-machine embedding.
Range performance: 4000m (2.3×2.3m NATO Targets),7000m (Maximum range)
Ranging accuracy ± 1m
Measurement accuracy ≥ 98%
Weight ≤ 57g
Product features:
1. Integrated configuration design and front end face multi-point sealing installation, strong anti-imbalance ability, high durability, long working life, eye safety;
2. Using non-thermal receiving optical design technology, with good optical noise suppression ability, near distance ranging performance and high and low temperature optical performance;
3. The internal interface of the circuit adopts the welding wire direct connection process, which is firm and reliable, which can avoid the short circuit or poor contact caused by the loosening, oxidation and water vapor of the connector, and improve the reliability and life of the product.
Product performance index:
| Item | Index | |
| Model | STA-H0407X | |
| Operating wavelength | 1535nm ±10nm | |
| Eye-Safe | Class 1 (IEC 60825-1) | |
| Receiving Aperture | Φ19mm | |
| Ranging range | 20-7000m | |
| Range performance observer visibility 12 km | 7000m | Typical large target,Maximum range |
| 5500m | Big target,Reflectivity:0.6 | |
| 4000m | 2.3 × 2.3 m target size,Reflectivity:0.3 | |
| 1800m | 1 × 1 m target size,Reflectivity:0.1 | |
| Communication Interface | RS422 / TTL | |
| Humidity | ≤ 60% | |
| Ranging accuracy | ±1m | |
| Accuracy rate | ≥98% | |
| Divergence angle | ≤0.5mrad | |
| Non-parallelism of the laser optical axis to the mounting reference | <0.3mrad | |
| Ranging frequency | 1~10hz Conventional mode | |
| 1~5Hz Low power mode（Pre factory settings） | ||
| Size | ≤48.5mm×36mm×26mm | |
| Voltage | 3.3-16V | |
| Electric current | ≤1.35A | Conventional mode：Instantaneous inrush current at power-on |
| ≤1A | Low power mode：Instantaneous inrush current at power-on | |
| ≤0.01A | Standby current. Note: The P-12 enable pin needs to be connected | |
| Power consumption | Standby power consumption ≤1W.
Rated power consumption ≤1.6W. Peak power consumption ≤4W |
|
| Working temperature | -40℃～+70℃ | |
| Storage temperature | -50℃～+75℃ | |
| Weight | ≤57g | |
Notes:
1) NATO target size 2.3 m × 2.3 m; Human target size 0.5 m × 1.7 m; Reflectivity 30%, observer visibility≥ 25km.
Applications for the STA-H0407X Laser Rangefinder Module:
Thermal imaging, night vision and other handheld mobile devices
Border observation and surveillance systems
Sensor kits for UAV pods and UGVs
Ranging mode and ranging time:
a) Single maximum continuous ranging time: ≥35min;
b) The maximum interval time for continuous distance measurement again: ≤15s.
Laser optical axis stability ≤ 0.1mrad (full temperature range);
Non-parallelism of the laser optical axis to the installation reference ≤0.25mrad;

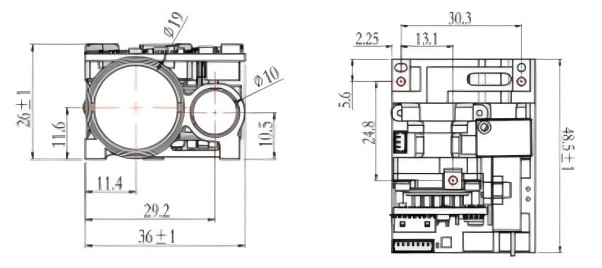

Structure installation interface:
Electrical interface:
a) Communication interface RS422/TTL communication;
Baud rate: 115200;
Data bit: 8;
Starting position: 1;
Stop position: 1;
Checkpoint: None;
b) External connectors;
For each byte of information, the Least Significant Bit (LSB) is transmitted first. For multi-byte information, the lower-order byte is transmitted first. External interconnection testing is achieved using an NH1.0-12P terminal wire connector (with locking mechanism) to mate with the NH1.0-12AWB SMD (horizontal mount) connector on the ranging module side. The pin definitions for the power supply and communication interface on the ranging module side are shown in the table below.
Table 1 Pin Definition
| Pin | Grade | Electrical Characteristics Definition | Remarks |
| P- 1 | VIN+ | Input Power Positive | Power supply |
| P-2 | VTN+ | ||
| P-3 | COM | Input Power Negative | |
| P-4 | COM | ||
| P-5 | RS422_TXD+ | Signal output port | From rangefinder to host computer |
| P-6 | RS422_TXD- | ||
| P-7 | RS422_RXD- | Signal input port | From host computer to rangefinder |
| P-8 | RS422_RXD+ | ||
| P-9 | TTL_TX | Signal output port | From rangefinder to host computer |
| P-10 | TTL_RX | Signal input port | From host computer to rangefinder |
| P-11 | TTL_GND | Communication ground wire | |
| P-12 | WAKE_UP | Wake/Sleep | High level wakes up, low level sleeps |
| Interface connector | |||
| NH1.0-12AWB SMD | Horizontal mount | ||
| NH1.0-12P | With locking mechanism | ||

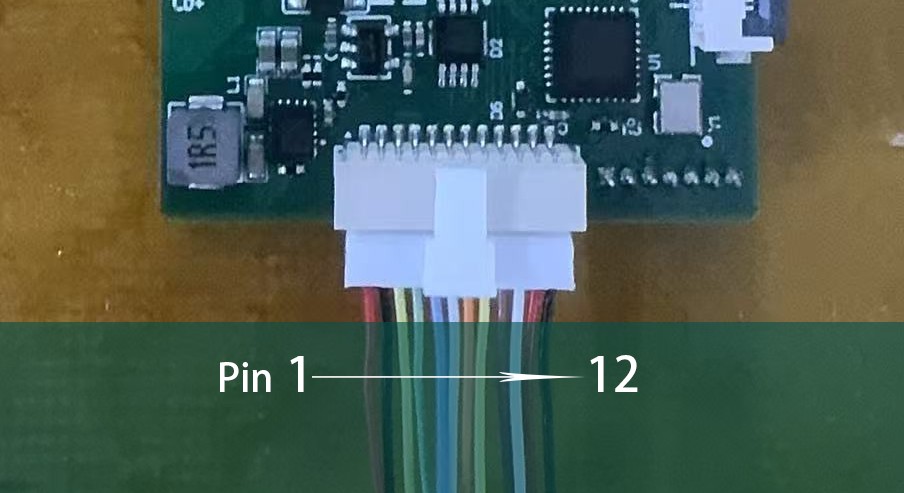

The schematic diagram of pins 1-12 is as follows

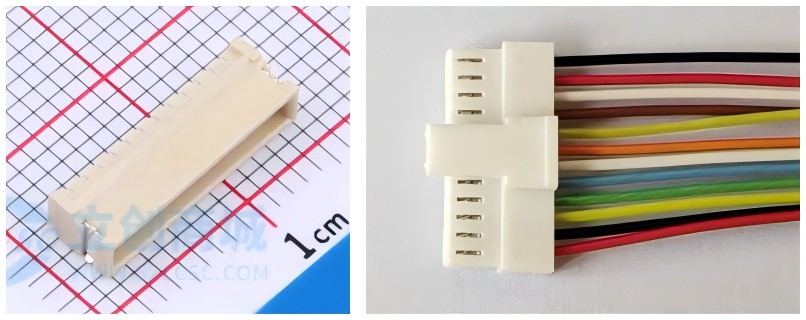

NH1.0-12AWB SMD NH1.0-12P

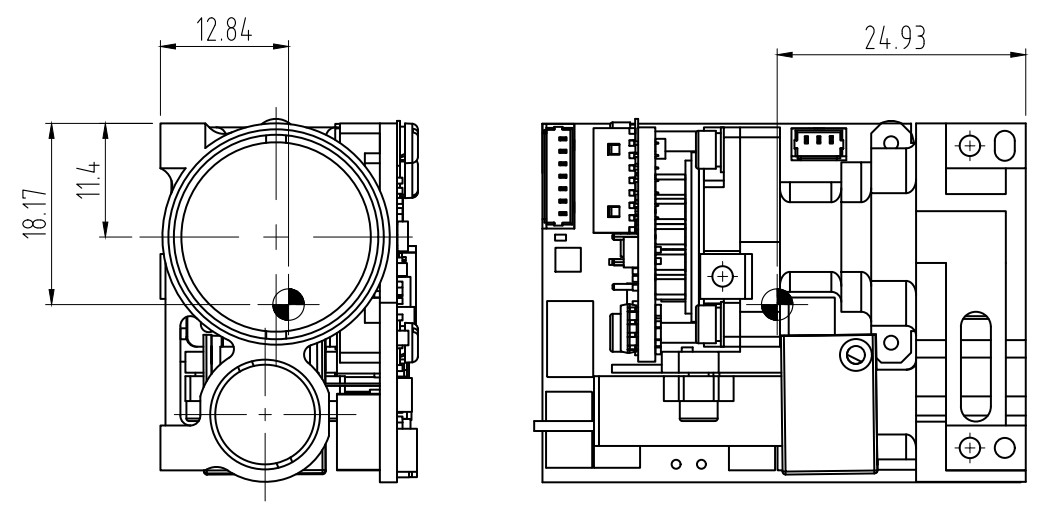

The installation center of gravity is shown in the following figure
