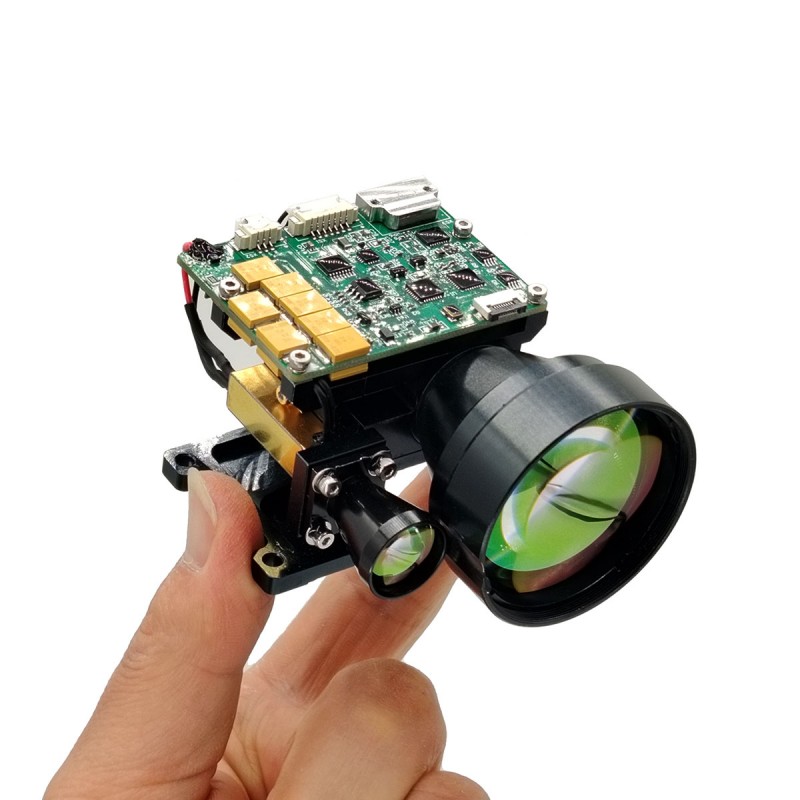

STA-LRB10000X laser ranging module is equipped with Stalaser’s independently developed 1535 nm erbium-glass laser assembly. It features a compact structure, low power consumption, and a ranging capability of up to 10km for typical NATO targets. With stable and reliable performance, it facilitates system integration and secondary development, making it an ideal core component for various compact long-range electro-optical systems.
Range performance:10000m (2.3×2.3m NATO Targets),15000m (Maximum range)
Ranging accuracy ± 1m
Measurement accuracy ≥ 98%
Weight ≤ 155g
Main functions:
(1) Single ranging and continuous ranging;
(2) Responding to laser ranging commands, and can stop ranging at any time according to the stop command;
(3) Output distance data and status information once per pulse during distance measurement;
(4) It can report the cumulative number of transmitted laser pulses (no loss of power down);
(5) Distance selection, front and rear target indication;
(6) Self-test function.
Product Performance Index for STA-LRB10000X Eye-safe LRF Module:
| Item | Technical parameter | Instruction |
| Model | STA-LRB10000X | |
| Working wavelength | 1535±5nm | |
| Eye safety | Class 1 (IEC 60825-1) | |
| Receiving Aperture | Φ40mm | |
| Emission aperture | Φ14mm | |
| Ranging capability | 50m-15km | |
| Ranging range | ≥20000m | Max Range,Reflectivity: 0.9,observer visibility 25 km |
| ≥15000m | Building targets,Reflectivity: 0.6, observer visibility 25 km | |
| ≥10000m | NATO target | |
| ≥5500m | Human target | |
| ≥2800m | UAV target | |
| Mini Range | 50m | |
| Multi-target detection | Up to 3 target | |
| Ranging accuracy | ±1m | 3δ |
| Ranging frequency | 1~10Hz adjustable | |
| Accuracy rate | ≥98% | |
| False alarm rate | 1% | |
| Divergence angle | ≤0.3mrad | |
| Communication Interface | RS422 | TTL/RS232 Interface can be customised |
| Voltage | 5~32V | Input voltage can be customized according to requirements |
| Working power | ≤3W(@10hz) | Normal temperature test |
| Peak power | ≤6W | Normal temperature test |
| Mechanical Shock | 75g，1ms | |
| Working temperature | -40℃～+60℃ | |
| Storage temperature | -45℃～+70℃ | |
| Reliability | MTBF ≥ 1500h | |
| Size | ≤79×66×46mm | |
| Weight | ≤153g | |
| Main Function | First and last target ranging,
Multi-target ranging, Distance selectivity |
|
Notes:
1) NATO target size 2.3 m × 2.3 m; Human target size 0.5 m × 1.7 m; UAV target size 0.3 m × 0.3m; Reflectivity 30%, Humidity≤60%，observer visibility≥ 25km
Structure installation interface:
External Interface:
The 1-8pin line sequence arrangement is shown in the figure below
| Pin | Definition | Function | Notes |
| 1 | RX+ | RS422 Receiver + | Blue |
| 2 | RX- | RS422 Receiver – | Green |
| 3 | TX- | RS422 Transmission – | Purple |
| 4 | TX+ | RS422 Transmission + | Yellow |
| 5 | GND | Communication ground wire | White |
| 6 | VEE | Power supply + | Red |
| 7 | GND | Power supply – | Black |
| 8 | PWR EN | / | Ash |
| Interface connector | |||
| A1251WR-S-8P-LCP | Wire-to-Board Connector Header | ||
| A1251WR-S-8P | 8Pin connecting cable | ||
Range performance maximum
20 km
Range performance on 2.3 x 2.3 m
12 km
Typical accuracy
±2 m
Range performance maximum
15 km
Range performance on 2.3 x 2.3 m
8 km
Typical accuracy
±1 m
Range performance maximum
15 km
Range performance on 2.3 x 2.3 m
8 km
Typical accuracy
±1 m
Range performance maximum
10 km
Range performance on 2.3 x 2.3 m
5 km
Typical accuracy
±1 m
Range performance maximum
7 km
Range performance on 2.3 x 2.3 m
4 km
Typical accuracy
±1 m
Range performance maximum
7 km
Range performance on 2.3 x 2.3 m
3 km
Typical accuracy
±1 m
