The STA-FT-IR laser warning and decoy system detects incoming laser designation signals in real time, accurately parses the temporal coding characteristics and azimuth information of the laser, and generates coherent jamming coding sequences autonomously. It controls the onboard laser to radiate towards designated angles to form high-fidelity laser false target spots, inducing incoming laser semi-active guided weapons to deviate from the original designation point, thereby effectively protecting own forces’ key targets and realizing active electro-optical countermeasure protection.
FT-IR Laser Detection Equipment is mainly divided into two models: FT-IR-DM-120 and FT-IR-AC-360. Among them, FT-IR-DM-120 is the detection extension model, which can be connected to the distributed detection unit FT-IR-DD-24 to extend the protection area.
Performance parameters:
FT-IR-DM-120
Table 1 Performance parameters of FT-IR-DM-120
| Serial Number | item | Indicators |
| 1 | Reaction time | ≤1.5s (receive the first pulse to the target and light out) |
| 2 | Number of false targets can be deployed | 8 |
| 3 | Number of distributed laser warning devices that can be connected | 4 |
| 4 | Laser detection range | Azimuth: 360° |
| Pitch: -15° to 90° | ||
| 5 | Intercept radius | ≮75m
(normal temperature moderate weather conditions, target indicator 120mj) |
| 6 | Angular resolution | 15 ° |
| 7 | Laser detection bands | 900nm to 1700nm |
| 8 | Maximum number of digits identifiable | 9:32 bits (stable irradiation) |
| 9 | Jamming laser wavelengths | 1.06 mu m |
| 10 | Interfere with the laser pulse width | 10±5ns |
| 11 | Interfere with the laser beam scatter Angle | 3±1mrad |
| 12 | Jamming laser maximum monopulse energy | ≥120mj |
| 13 | Interfere with laser maximum refrequency | 40Hz |
| 14 | Interfere with the laser light out time | a) 20Hz: emit 120s, rest 60s, sustainable cycle output
b) At 40Hz: launch 60s, rest 60s, sustainable cycle output |
| 15 | Azimuth Angle range | n×360° |
| 16 | Pitch Angle range | -30° to +30° |
| 17 | Powering | AC 90V ~ 305V/47Hz ~ 63Hz (can use DC24V direct power supply) |
| 18 | Peak power consumption | 480W |
| 19 | Standby power consumption | 60W |
| 20 | Overall dimension | 326mm×290mm×480mm |
| 21 | Weight | 32.8 kg |
| 22 | Operating temperature | -40℃ ~ +55℃ |
| 23 | Storage temperature | -40℃ ~ +60℃ |
| 24 | Level of protection | IP65 |
| 25 | Vibration test | 5 ~ 16Hz: 1.5mm; 16 to 60Hz: 1.5g |
| 26 | Impact test | 10g/11ms |
FT-IR-AC-360
Table 2 Performance parameters of FT-IR-AC-360
| Serial Number | Items | Indicators |
| 1 | Reaction time | ≤1.5s (receive the first pulse to the target and light out) |
| 2 | Number of false targets can be deployed | 8 |
| 3 | Laser detection range | Azimuth: 360° |
| Pitch: -15° to 90° | ||
| 4 | Intercept radius | ≮75m
(normal temperature moderate weather conditions, target indicator 120mj) |
| 5 | Angular resolution | 15 ° |
| 6 | Laser detection bands | 900nm to 1700nm |
| 7 | Maximum number of identifiable code bits | Level 32 (stable exposure) |
| 8 | Jamming laser wavelengths | 1.06 mu m |
| 9 | Interfere with the laser pulse width | 10±5ns |
| 10 | Interfere with the laser beam scatter Angle | 3±1mrad |
| 11 | Jamming laser maximum monopulse energy | 180mj |
| 12 | Interfere with laser maximum refrequency | 25Hz |
| 13 | Interfere with the laser exit time | a) 20Hz: emit 120s, rest 60s, sustainable cycle output
b) 25Hz: launch 100s rest 60s, sustainable cycle output |
| 14 | Azimuth Angle range | n×360° |
| 15 | Pitch Angle range | -30° to +30° |
| 16 | Power Supply | AC 90V ~ 305V/47Hz ~ 63Hz (can use DC24V direct power supply) |
| 17 | Peak power consumption | 500W |
| 18 | Standby power consumption | 60W |
| 19 | Overall dimensions | 310mm×290mm×480mm |
| 20 | Weight | 32.5 kg |
| 21 | Operating temperature | -40℃ ~ +55℃ |
| 22 | Storage temperature | -40℃ ~ +60℃ |
| 23 | Class of protection | IP65 |
| 24 | Vibration test | 5 to 16Hz: 1.5mm; 16 to 60Hz: 1.5g |
| 26 | Impact test | 10g/11ms |
FT-IR-DD-24
Table 3 FT-IR-DD-24 Performance parameters
| Serial number | Items | Indicators |
| 1 | Laser detection range | Azimuth: 360° |
| Pitch: -15° to 90° | ||
| 2 | Intercept radius | ≮75m
(normal temperature moderate weather conditions, target indicator 120mj) |
| 3 | Angular resolution | 15 ° |
| 4 | Laser detection bands | 900nm to 1700nm |
| 5 | Maximum number of identifiable code bits | 9:32 bits (stable irradiation) |
| 6 | Overall dimension | 226mm×210mm×105mm |
| 7 | Weight | 2.76 kg |
| 8 | Operating temperature | -40℃ ~ +55℃ |
| 9 | Storage temperature | -40℃ ~ +60℃ |
| 10 | Level of protection | IP65 |
| 11 | Vibration test | 5 ~ 16Hz: 1.5mm; 16 to 60Hz: 1.5g |
| 12 | Impact test | 10g/11ms |
On-board deployment:

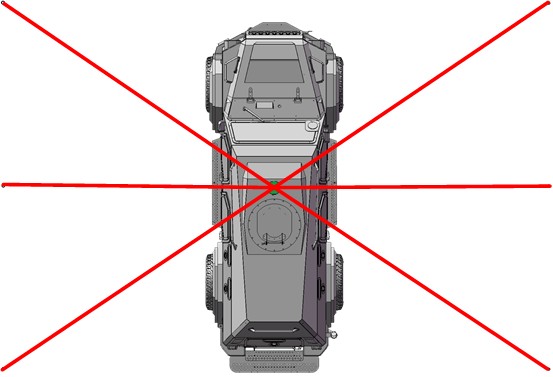

On-board deployment refers to the deployment of equipment on a moving vehicle to protect a moving vehicle or convoy. Vehicle-mounted deployment is FT-IR-AC-360. The vehicle-mounted deployment is shown in the figure below:
In vehicle-mounted deployment, the equipment is installed at the vehicle sight point, and the zero line of the equipment points to the front direction, and the false target direction is generally the ground on both sides of the vehicle.
When configuring the false sight, the vehicle must maintain a static level state.
Main interface for software operation

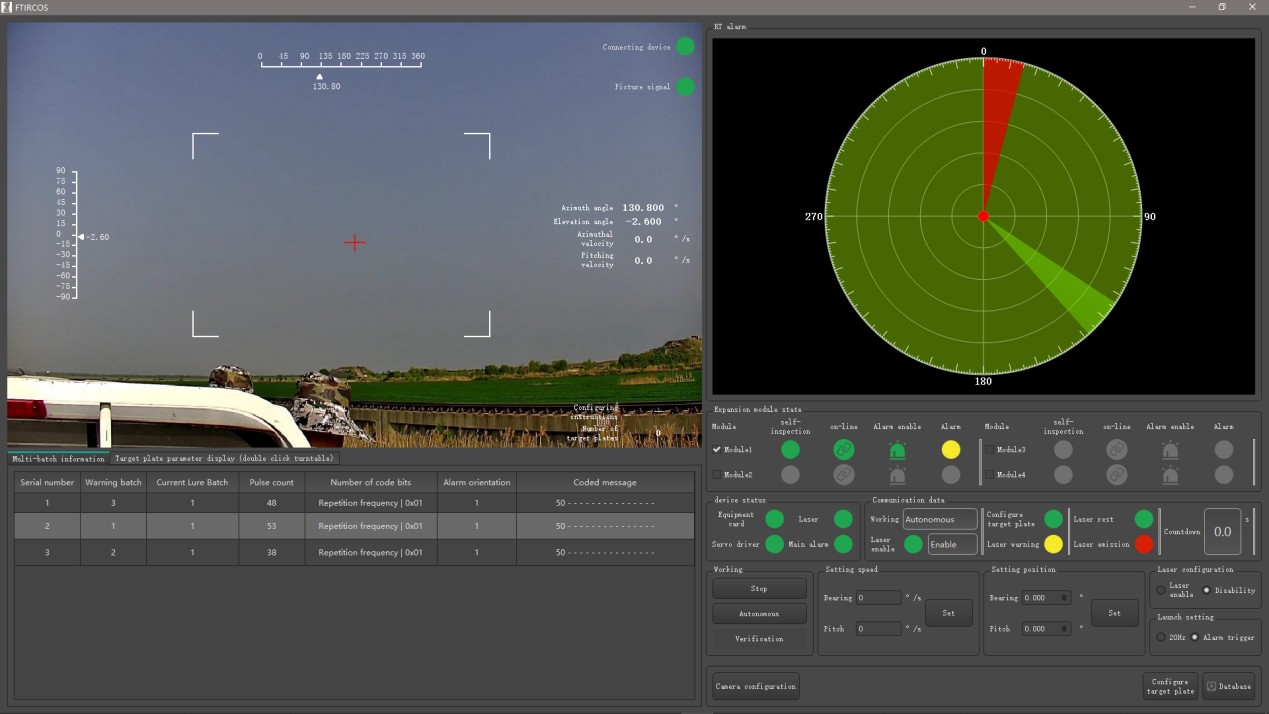

The main interface of the device software is shown in the figure.
The equipment software mainly consists of the following modules: video display module, real-time alarm information module, equipment status display module, communication data display module, multi-batch information display module, parameter setting module, and target plate parameter display & configuration module.
For more product information, please contact the Stalaser team
