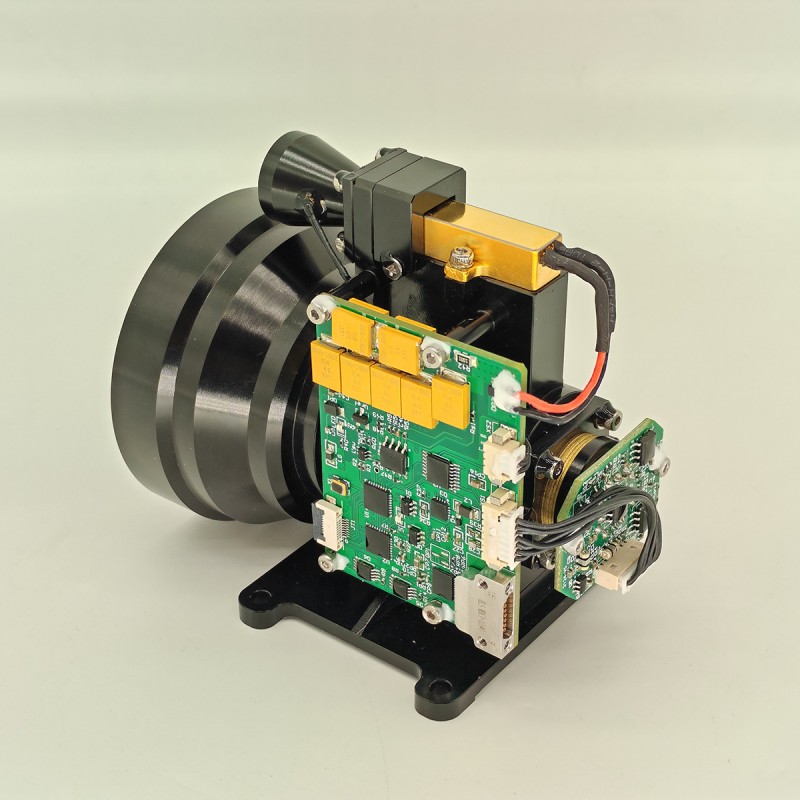

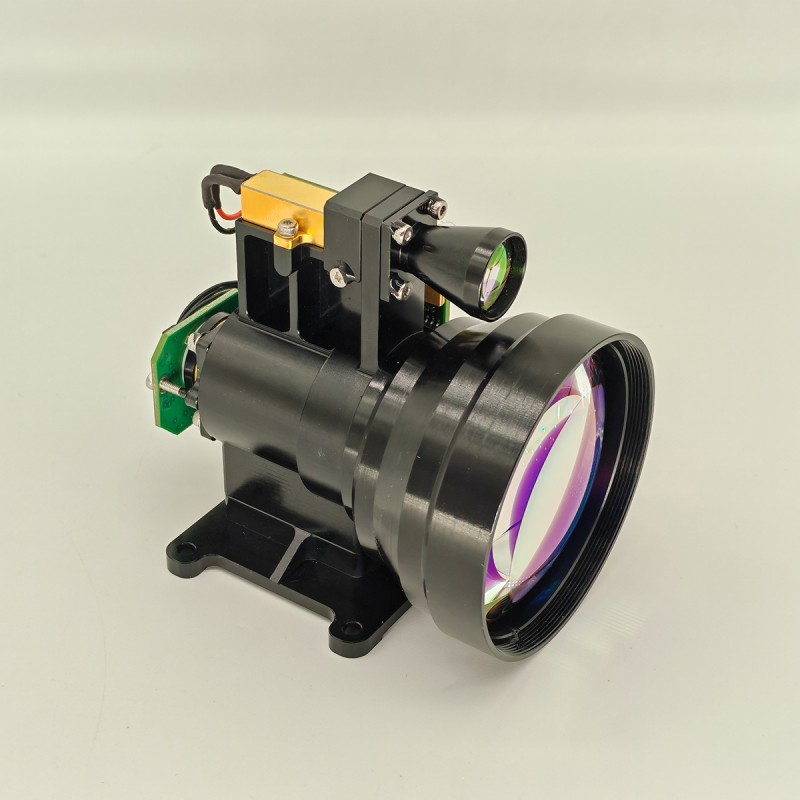

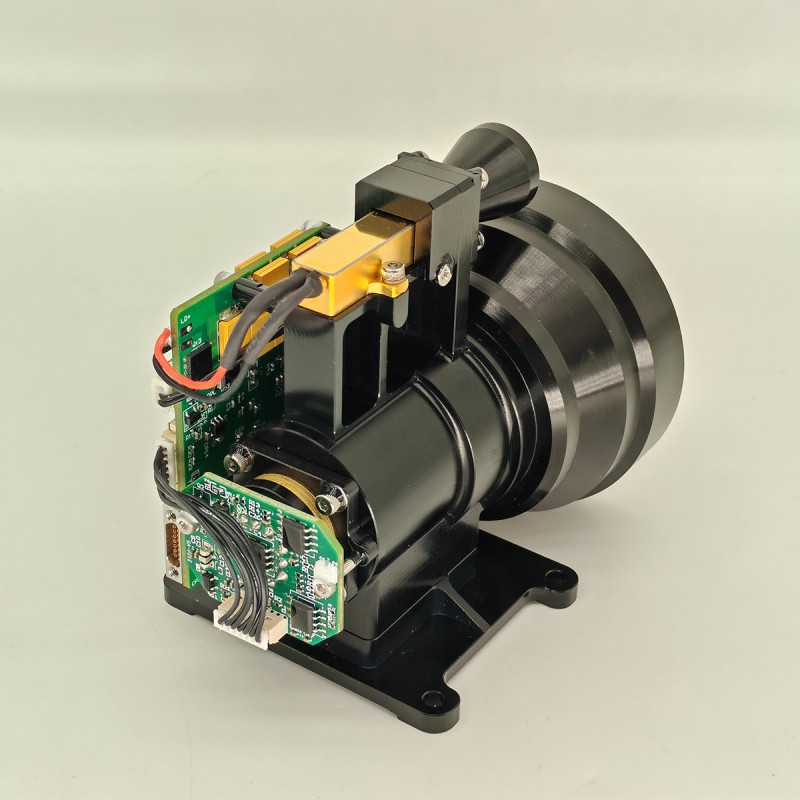

The compact STA-LRW2000X laser rangefinding module is specifically designed for deep integration into army and navy air defense systems. It adopts advanced diode‑pumped erbium-glass laser technology, offering high reliability and low maintenance costs. With a beam divergence of 2 mrad, it can accurately measure distances up to 2000 meters against UAV targets with a cross-ectional area of 0.1 m², making it a core key component of counter-UAV systems.
Main Functions:
1)Single ranging and continuous ranging;
2) Responding to laser ranging commands and stopping ranging at any time according to the stop command;
3) Outputs distance data and status information once per pulse during ranging;
4) It can report the cumulative number of transmitted laser pulses (no loss of power down);
5) Distance selection, before and after target indication;
6) Self-test function.
Product performance index for LRW2000X Eye-safe LRF Module:
| Item | Technical parameter | Instruction |
| Model | STA-LWR2000X | |
| Working wavelength | 1535±5nm | |
| Eye safety | Class 1 (IEC 60825-1) | |
| Receiving Aperture | Φ57mm | |
| Emission aperture | Φ19mm | |
| Ranging capability | 50m-20km | |
| Ranging range | ≥15000m | Max Range |
| ≥10000m | Big target,Reflectivity: 0.6, observer visibility 25 km | |
| ≥6000m | NATO target | |
| ≥3500m | Human target | |
| ≥2000m | UAV target | |
| Mini Range | 50m | |
| Multi-target detection | Up to 3 target | |
| Ranging accuracy | ±2m | RMS |
| Ranging frequency | 1~10Hz adjustable | |
| Accuracy rate | ≥98% | |
| False alarm rate | 1% | |
| Divergence angle | ≤2mrad | |
| Communication Interface | RS422 | TTL Customizable |
| Voltage | DC 5~32V | |
| Starting current | ≤1A | |
| Working power | ≤3W | Normal temperature test |
| Peak power | ≤6W | Normal temperature test |
| Mechanical Shock | 75g，1ms | |
| Working temperature | -40℃～+60℃ | |
| Storage temperature | -55℃～+70℃ | |
| Reliability | MTBF ≥ 1500h | |
| Size | ≤90mm×63mm×82mm | |
| Weight | ≤350g | |
| Main Function | First and last target ranging; Multi-target ranging; Distance selectivity; | |
| More function | 1. Distance blind spot setting gating function;
2. Self checking function (high voltage, temperature, etc.); 3. Distance resolution: 30m; |
|
Notes:
1) NATO target size 2.3 m × 2.3 m; Human target size 0.5 m × 1.7 m; UAV target size 0.3 m × 0.3m; Reflectivity 30%, humidity ≤ 60%, observer visibility≥ 20km.

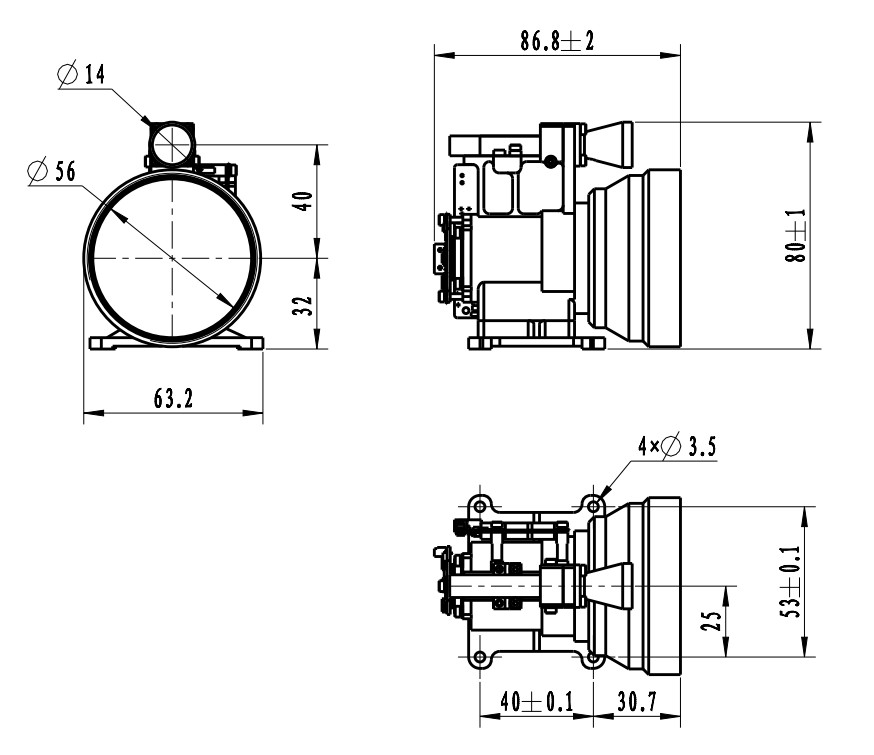

Mechanical structure diagram:
External Interface:
| Pin | Definition | Function | Notes |
| 1 | RX+ | RS422 Receiver + | Blue |
| 2 | RX- | RS422 Receiver – | Green |
| 3 | TX- | RS422 Transmission – | Purple |
| 4 | TX+ | RS422 Transmission + | Yellow |
| 5 | GND | Communication ground wire | White |
| 6 | VEE | Power supply + | Red |
| 7 | GND | Power supply – | Black |
| 8 | PWR EN | / | Ash |
